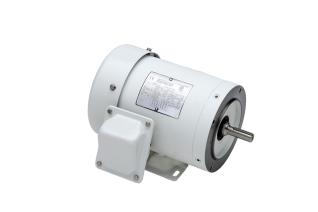

Motor
DH0104PHA
Features
- PREMIUM EFFICIENT
- Rolled Steel Frame with Cast Iron End Brackets
- Sterli-Seal ® Washdown Duty
- Class 'F' Insulation, 1.15 Service Factor
- Suitable for 208 Volt Operation
- C-Face Supplied with Internally Locked Drive End Bearing
- Suitable for Inverter use per NEMA MG1-Part 31.4.4.2
- Suitable for 50 Hz. Operation at 60 Hz. Torque with 1.0 Service Factor at 190/380, 200/400 or 208/416 Voltages
Pricing
Dimensional Drawings
 Specifications Sheet (PDF)
|
Complete Specifications
| Model Number |
DH0104PHA |
| Horsepower |
10 |
| RPM |
1800 |
| RPM (full load) |
1770 |
| Phase |
3 |
| Frequency |
60 |
| Voltage |
230/460 |
| Frame Size |
215TC |
| Mounting |
C-Face Footed |
| Enclosure |
TEFC |
| Amps |
24.4/12.2 |
| Amps (locked) |
176/88 |
| Efficiency (at 100%) |
91.7 |
| Efficiency (at 75%) |
91.3 |
| Efficiency (at 50%) |
90 |
| Power Factor (at 100%) |
84.8 |
| Power Factor (at 75%) |
79.4 |
| Power Factor (at 50%) |
70.5 |
| Full Load Torque (ft lb) |
29.77 |
| Locked Rotor Torque (% of Full Load) |
180 |
| Breakdown Torque (% of Full Load) |
280 |
| Brake Torque (ft lb) |
0 |
| Efficiency Type |
Premium |
| Construction Materials |
Rolled Steel |
| Estimated Weight |
156 |
| Washdown |
Yes |
| Wiring Diagram |
1,2 |
|
