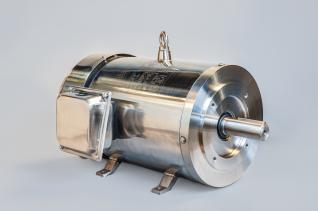

Motor
XH0202PHA-1
Features
- All Stainless Steel Construction PREMIUM EFFICIENT
- Class 'F' Insulation, 1.15 Service Factor
- C-Face Supplied with Internally Locked Drive End Bearing
- Suitable for Inverter use per NEMA MG1-Part 31.4.4.2
-
Pricing
|
Complete Specifications
| Model Number |
XH0202PHA-1 |
| Horsepower |
20 |
| RPM |
3600 |
| RPM (full load) |
3560 |
| Phase |
3 |
| Frequency |
60 |
| Voltage |
230/460 |
| Frame Size |
256TC |
| Mounting |
Footed |
| Enclosure |
TEFC |
| Amps |
46.4/23.2 |
| Amps (locked) |
280/140 |
| Efficiency (at 100%) |
91 |
| Efficiency (at 75%) |
91.3 |
| Efficiency (at 50%) |
91.2 |
| Power Factor (at 100%) |
89 |
| Power Factor (at 75%) |
90.1 |
| Power Factor (at 50%) |
89.5 |
| Full Load Torque (ft lb) |
29.5 |
| Locked Rotor Torque (% of Full Load) |
160 |
| Breakdown Torque (% of Full Load) |
220 |
| Brake Torque (ft lb) |
0 |
| Efficiency Type |
Premium |
| Construction Materials |
Stainless Steel |
| Estimated Weight |
|
| Washdown |
Yes |
| Wiring Diagram |
3,4 |
|
